Products introduction

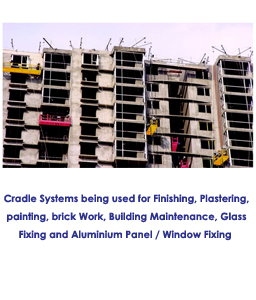

It is used for exterior construction, decorating, cleaning and maintenance of high rise building, a substitute of traditional scaffold, and ideal machine, the welding of Seagoing ship in shipbuilding industry, cleaning of oil-based paint, installation of elevator, big-size tanks and high chimneys, and inspection, cleaning and repair of bridge

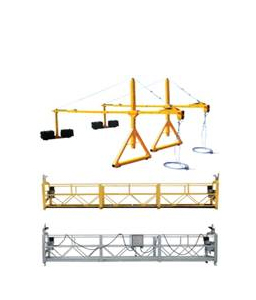

Hanging Platform
MODEL	SP 800
Rated Capacity	800 KG
Hoist Speed	8.2 m/Min
Material	M. Steel with Painting
Height	0100 meter
Volume	2.9 m3
Platform Dimension	Length :- 7500MM
	Width :-  690MM
	Height :- 1180MM
SUSPENSION MECHANISM
Rated Front Beam Overhang	1300 MM
Front Beam Height	1300-1800 mm
Adjustable distance	100 mm
HOIST
MODEL	SP 8.0
Quantity	2 Unit
Electric Motor
Model	Y2-100L-4
Power	1.8 KW
Voltage	380 V
Rotation Speed	1420 n/Min
SAFETY LOCK
MODEL	LSG 30
Quantity	2 Nos
Permitted Force if impact	30 KN
WEIGHT
Suspended Platform	217 KG
Hoist	54 KG X 2 Nos
Safety Lock	5 KG X 2 Nos
Suspension Mechanism	350 Kg
Jack Box	15 KG
Total	826 KG
Counterweight	1000 (25 x 40) Units

Note : Counterweight is not included in total weight (Concrete Counter Weight)
