Cuplock System
Rushabh Scaffolding offers variety of Scaffolding Cuplock which are manufactured using fine metal,
which ensures high strength to our products. Cuplock System made by us are available in different sizes and specification
and also it can be customized one our client's demand. These Cuplock Systems are available for wholesale supply. Durability
and reliability are some of the features, which as helped our organization to establish ourselves as leading Cuplock manufacturers
and suppliers all over INDIA.
Range of Cuplock System manufactured by us:

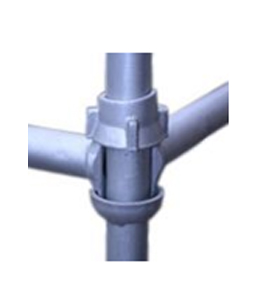

CUPLOCK VERTICALS
• Verticals are provided with Cup Joints welded at 500mm Intervals.
• Captive Mobile top Cups are forged to withstand rough handling at site.
• Bottom Cups are pressed with high Quality steel.
• Ends are provided with 150mm long spigot for continuous connections.
• Vericals are IS tested MS tubes 40mm medium/heavy outer dia 48.3mm
| NAME |
SIZE |
| VERTICAL |
3 |
| VERTICAL |
2.5 |
| VERTICAL |
2 |
| VERTICAL |
1.8 |
| VERTICAL |
1.5 |
| VERTICAL |
1.2 |
| VERTICAL |
1 |
| VERTICAL |
0.9 |
| VERTICAL |
0.5 |
CUPLOCK HORIZONTALS
• Made out of 40MM NB IS tested medium/heavy class tubes (48.3mm O.D).
• Ledgers/Horizontals have similar forged blade ends.

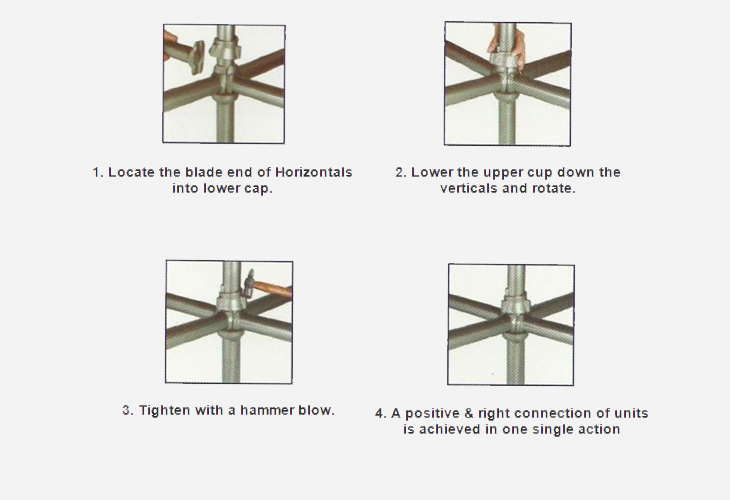

• Four horizontals to be fixed in Single operation.
• To fix Top Cup only a hammer is required
| NAME |
SIZE |
| LEDGER |
0.9 |
| LEDGER |
1 |
| LEDGER |
1.25 |
| LEDGER |
1.5 |
| LEDGER |
1.8 |
| LEDGER |
2 |
| LEDGER |
2.5 |
