Rebar Binding Tying Machine
These are used for binding bars at construction sites.
They reduce the cycle time of bar binding done manually by 8 to 10 times. Thus Saving time & labour.
It marginally improves the binding quality & efficiency of the workers.
The complete process from bar binding, making knots, cutting is performed in less than 1 second apporx.
COMPARISON :
| Binding Manually |
Binding by Machine |
| Firstly cut certain length of wire, bind it across reinforcement, then bind tightly with a hook.It will take around 10 seconds to finish. |
Wire feeding, binding, cutting. tying takes around 1 second. |
| The tightness of binding differs, The wire is easy to break down.
|
The tightness of binding is controlled by microchip and can be adjusted freely.
|
| The wire may scratch youur fingers and other parts of your body. It causes injury to people.
|
All the binding steps finish inside of the machine with 9.6 V safe voltage. Which can not cause injury to people. |

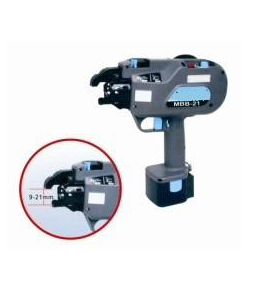

| Model |
MBB-21 |
| Max . Binding Diameter |
21mm |
| Time of Making a knot |
0.8 seconds |
| Voltage |
DC 9.6 V |
| Weight |
2.15 kg |
| Turns per Tie |
2 Turns / 3 Turns |
| Tie per Coil |
Apporx. 260 Ties (2 Turns ) |
| Ties per Change |
Over 1,000 ties |
| Length of Wire for Tying |
380mm / 2 Turns , 510mm / 3 Turns |
| Dimension (L)x(W)x(H) |
268mm×100mm×296mm |

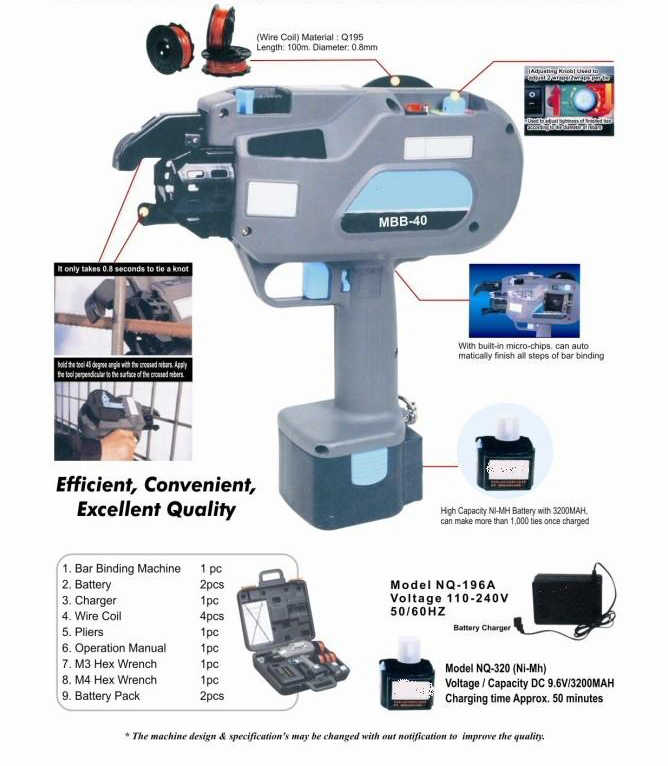

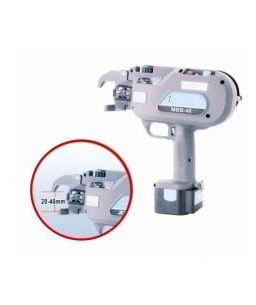

| Model |
MBB-40 |
| Max . Binding Diameter |
40mm |
| Time of Making a knot |
0.9 seconds |
| Voltage |
DC 9.6 V |
| Weight |
2.2 kg |
| Turns per Tie |
2 Turns / 3 Turns |
| Tie per Coil |
Apporx. 160 Ties (2 Turns ) |
| Ties per Change |
Over 900 ties |
| Length of Wire for Tying |
380mm / 2 Turns , 780mm / 3 Turns |
| Dimension (L)x(W)x(H) |
285mm×100mm×296mm |

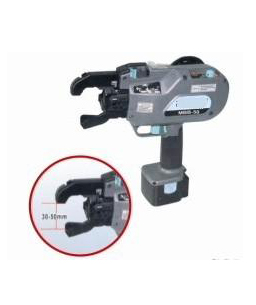

| Model |
MBB-50 |
| Max . Binding Diameter |
50mm |
| Time of Making a knot |
1.0 seconds |
| Voltage |
DC 9.6 V |
| Weight |
2.25 kg |
| Turns per Tie |
3 Turns / 4 Turns |
| Tie per Coil |
Apporx. 100 Ties (3 Turns ) |
| Ties per Change |
Over 800 ties |
| Length of Wire for Tying |
100mm / 3 Turns , 1350mm / 3 Turns |
| Dimension (L)x(W)x(H) |
300mm×100mm×296mm |
